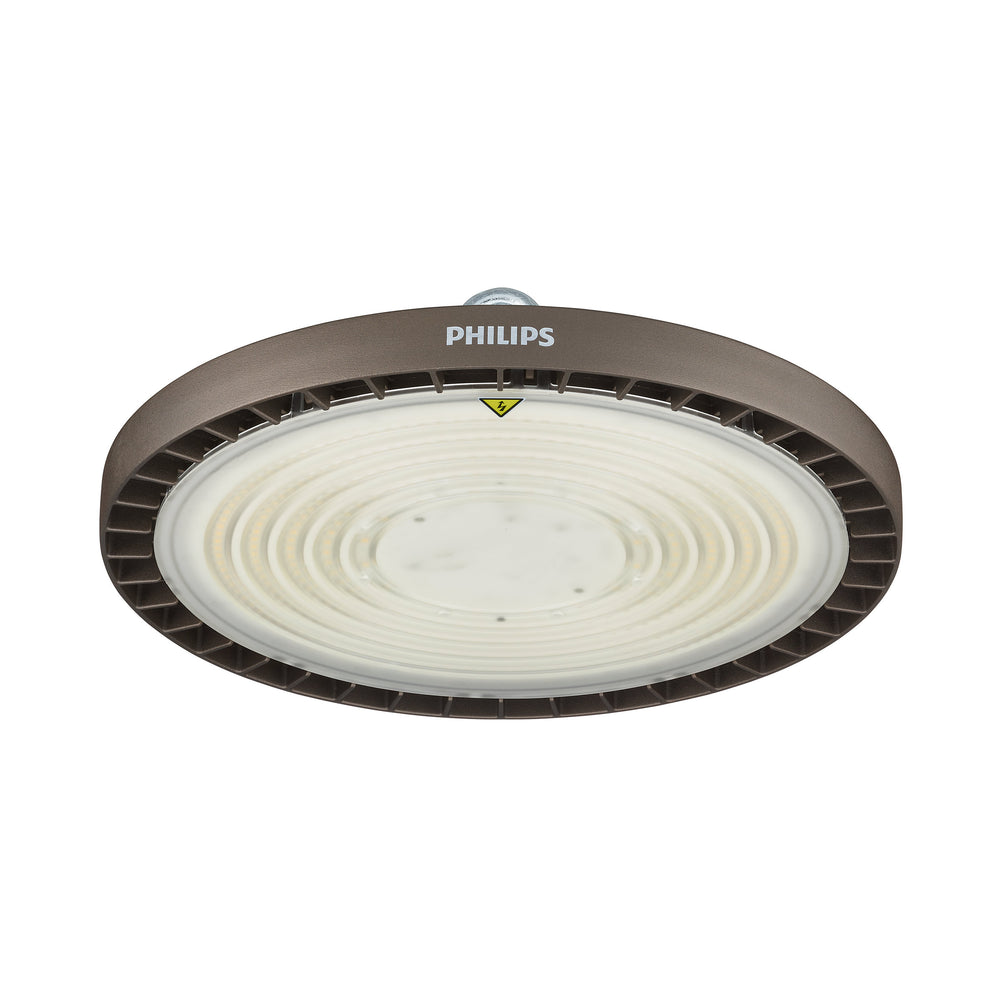

Philips Ledinaire Highbay LED 168W 20500 lumens 4000K IP65 IK06 Wide Beam Gray Die-Cast Housing
Philips Ledinaire Highbay LED 168W 20500 lumens 4000K IP65 IK06 Wide Beam Gray Die-Cast Housing
Philips Ledinaire Highbay LED 168W 20500 lumens 4000K IP65 IK06 Wide Beam Gray Die-Cast Housing
Philips Ledinaire Highbay LED 168W 20500 lumens 4000K IP65 IK06 Wide Beam Gray Die-Cast Housing
Philips Ledinaire Highbay LED 168W 20500 lumens 4000K IP65 IK06 Wide Beam Gray Die-Cast Housing
Philips Ledinaire Highbay LED 168W 20500 lumens 4000K IP65 IK06 Wide Beam Gray Die-Cast Housing

LED Highbay Ledinaire Wide Beam
-
168W
-
20500lm
-
4000K
-
IP 65
-
incl. 30cm connection cable

PH524040
Energy label
1.403,95
Stock: 30+
Expected delivery time: 7 - 9 dagen
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Philips Ledinaire Highbay LED 168W 20500 lumens 4000K IP65 IK06 Wide Beam Gray Die-Cast Housing
LED Highbay Ledinaire Wide Beam
-
168W
-
20500lm
-
4000K
-
IP 65
-
incl. 30cm connection cable
1.403,95
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0,00
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Description

Powerful and reliable LED highbay lighting

The Philips Ledinaire Highbay LED 168W offers you a reliable lighting solution with 20500 lumens of bright output, excellent efficiency, and a durable design. You get a robust fixture that is easy to install, energy-efficient, and perfect for demanding industrial or commercial spaces.

Why this LED highbay is ideal for you

This LED fixture delivers strong light performance with a neutral white 4000K tone, ensuring good visibility in warehouses, factories, or retail environments. With IP65 protection and a sturdy die-cast aluminum housing, it is built to withstand dust, moisture, and impact for long-lasting use.

Main features

  • Philips Ledinaire Highbay LED 168W with 20500 lumens guarantees powerful illumination for your workspace.
  • Neutral White 4000K color temperature provides a balanced light for better visual comfort.
  • Wide beam 90° optic spreads light evenly, reducing shadows in large open areas.
  • IP65 rating ensures dust-tight and water jet-resistant protection, perfect for industrial use.
  • IK06 impact resistance adds robustness against mechanical stress.
  • Die-cast aluminum housing with matte polycarbonate cover ensures durability and professional finish.
  • CRI >80 delivers accurate color rendering important in retail and warehouse applications.
  • Energy-efficient design with 122 lumens per watt saves electricity while providing bright output.
  • Compact 355mm diameter and 93mm height make it suitable for various installation spaces.
  • Complies with CE and RoHS standards, ensuring safety and sustainability.

Applications

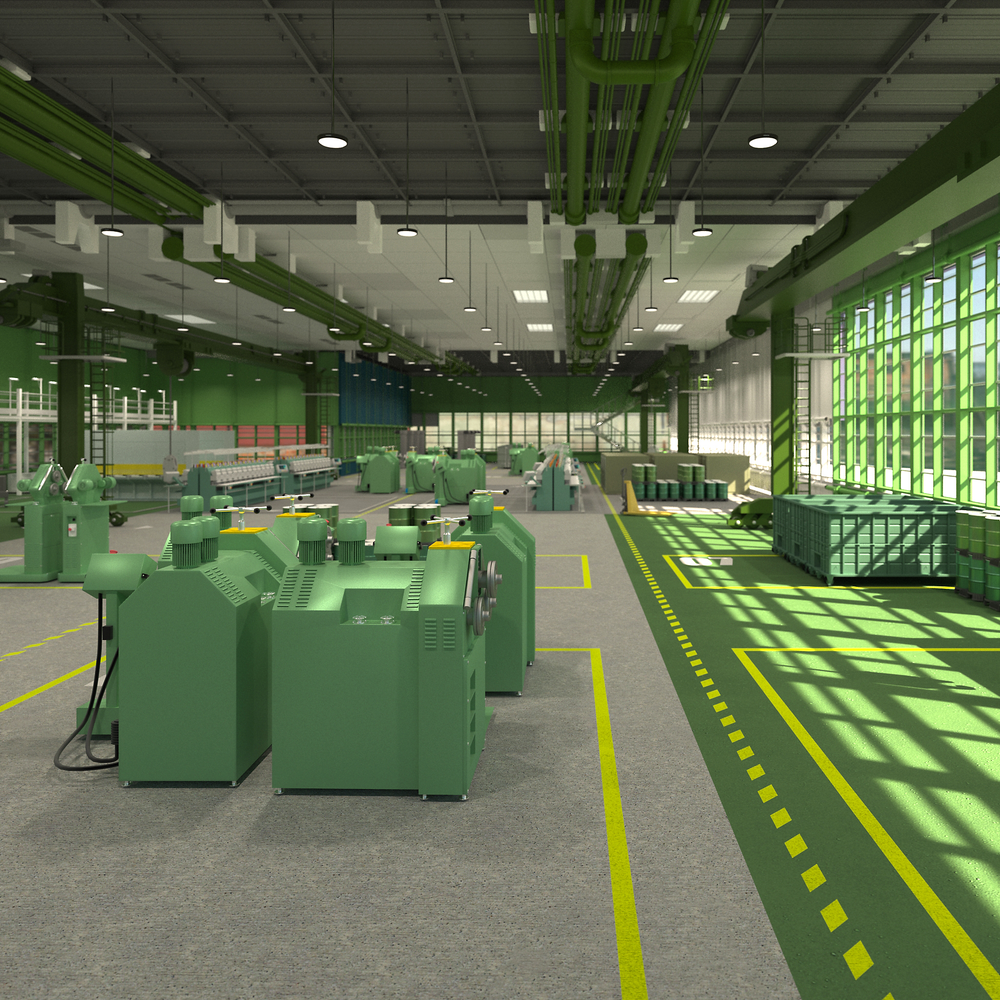

You can use this Philips Ledinaire Highbay LED in warehouses, production halls, retail stores, logistics centers, and other large spaces where consistent brightness, durability, and efficiency are essential. Its design makes installation quick and reliable while reducing ongoing maintenance costs.

Specifications

General

Product Family
Ledinaire Highbay
Product Code
BY021P G2 LED205S/840 PSU WB GR
Order Product Name
BY021P G2 LED205S/840 PSU WB GR
Full Product Name
BY021P G2 LED205S/840 PSU WB GR
Order Code
8719514524040
Material Number (12NC)
911401642307
EAN/UPC - Product
8719514524040
EAN/UPC - Case
8719514524040
Lamp Type
LED
Light Source Replaceable
Yes
Driver Included
Yes
Number of Gear Units
1
Service Tag
No

Electrical Ratings

Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Power Consumption
168 W
Power Consumption Tolerance
+/-10%
Power Factor
0.9
Inrush Current
54 A
Inrush Time
0.75 ms
Total Harmonic Distortion
20%
Products on MCB (16A Type B)
6

Lighting Characteristics

Luminous Flux
20500 lm
Luminous Efficacy
122 lm/W
Correlated Color Temperature
4000 K
Color Rendering Index (CRI)
>80
Light Source Color
840 Neutral White
Beam Angle
90°
Optic Type
Wide beam
Luminous Flux Tolerance
+/-10%
Color Consistency
≤5 SDCM
Initial Chromaticity
(0.38, 0.38) SDCM <5
Unified Glare Rating (UGR)
Not applicable

Physical Attributes

Dimensions
Overall Diameter
355 mm
Overall Height
93 mm
Housing Material
Die-cast aluminum ADC1 alloy grade (EN AC-47100)
Optic Material
Polycarbonate
Optical Cover Material
Polycarbonate
Optical Cover Finish
Matte
Fixation Material
Steel
Housing Color
Gray
Net Weight
2.45 kg
Cable
0.3 m cable with 3-pole connector
Connection
3-pole connection unit

Controls and Dimming

Dimmable
No
Driver Type
Power supply unit (on/off)
Control Interface
None
Constant Light Output
No

Operational Conditions

Ambient Temperature Range
-20 to +45 °C
Performance Ambient Temperature (Tq)
35 °C
Suitable for Random Switching
No

Performance and Lifetime

Lumen Maintenance at 50,000 hrs
L70
Driver Failure Rate at 50,000 hrs
7.5%

Certifications and Safety

Ingress Protection Code
IP65 (Dust penetration-protected, jet-proof)
Mechanical Impact Protection Code
IK06 (1 J)
IEC Safety Class
Class I
Glow-wire Test
Temperature 650 °C, duration 30 s
EU RoHS Compliant
Yes
CE Mark
Yes
Warranty Period
3 years
Photobiological Risk
Risk group 1 @200mm to EN62778
Philips Ledinaire Highbay LED 168W 20500 lumens 4000K IP65 IK06 Wide Beam Gray Die-Cast Housing
LED Highbay Ledinaire Wide Beam
-
168W
-
20500lm
-
4000K
-
IP 65
-
incl. 30cm connection cable
