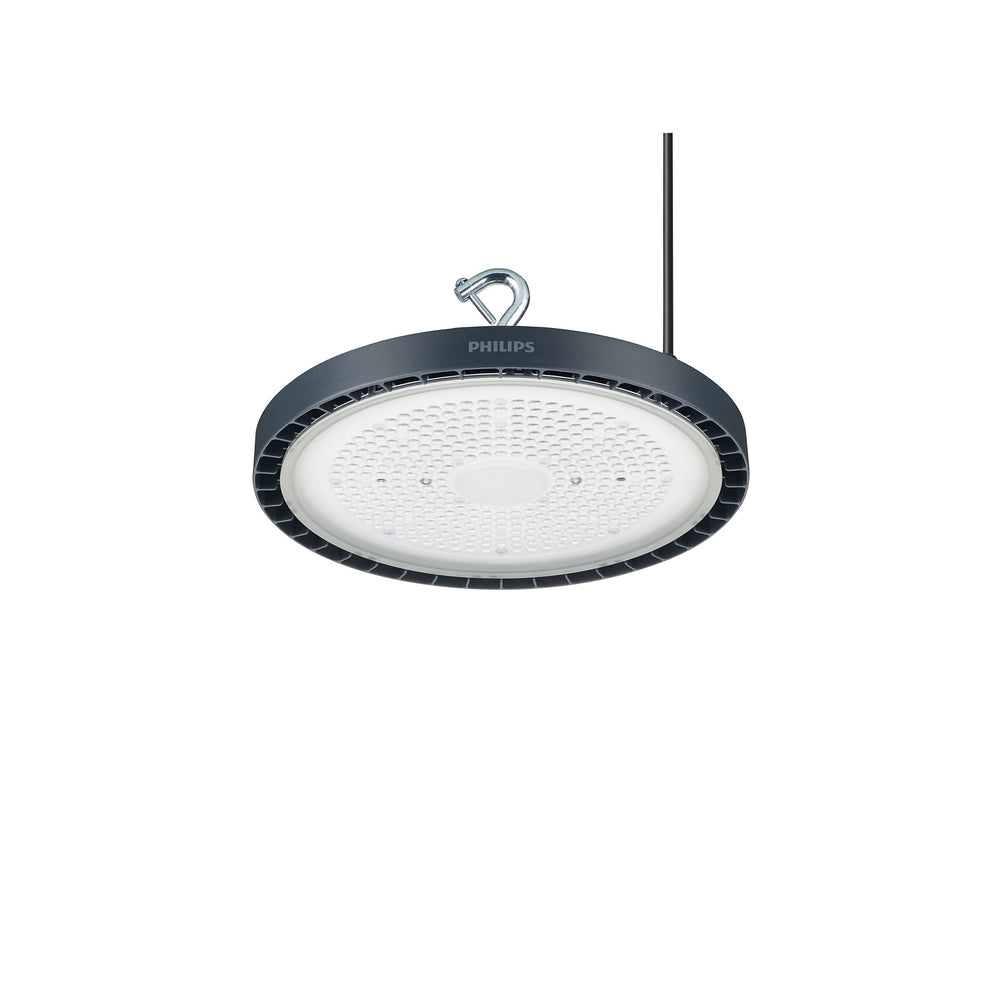

Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam

LED Highbay light CoreLine Narrow beam
-
126W
-
20000 lm
-
4000K
-
IP 65
-
incl. 30cm connection cable

PH955684
Energy label
2.184,95
Stock: 30+
Expected delivery time: 7 - 9 dagen
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Philips CoreLine Highbay Gen5 LED Highbay Light 126W 20000 lumens 4000K IP65 IK08 Gray Narrow Beam
LED Highbay light CoreLine Narrow beam
-
126W
-
20000 lm
-
4000K
-
IP 65
-
incl. 30cm connection cable
2.184,95
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0,00
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Description

Philips CoreLine Highbay Gen5 LED lighting

The Philips CoreLine Highbay Gen5 LED highbay light gives you powerful 20000 lumens brightness, reliable 126W performance, and impressive energy efficiency. With its durable IP65 and IK08 housing, it’s perfect for you if you need long-lasting, robust illumination in warehouses, factories, or sports halls.

Energy-efficient lighting benefits

You get 159 lumens per watt, meaning lower energy bills without compromising light output. The 4000K neutral white light creates great visibility and a natural working atmosphere. With a high power factor of 0.95, you also reduce unnecessary power loss and achieve more efficient electrical performance.

Durable design

This luminaire uses a die-cast aluminum housing and polycarbonate optic cover for strength, moisture resistance, and impact protection. Rated IP65 and IK08, it resists dust, water jets, and mechanical shocks, making it a reliable choice for tough environments.

Applications

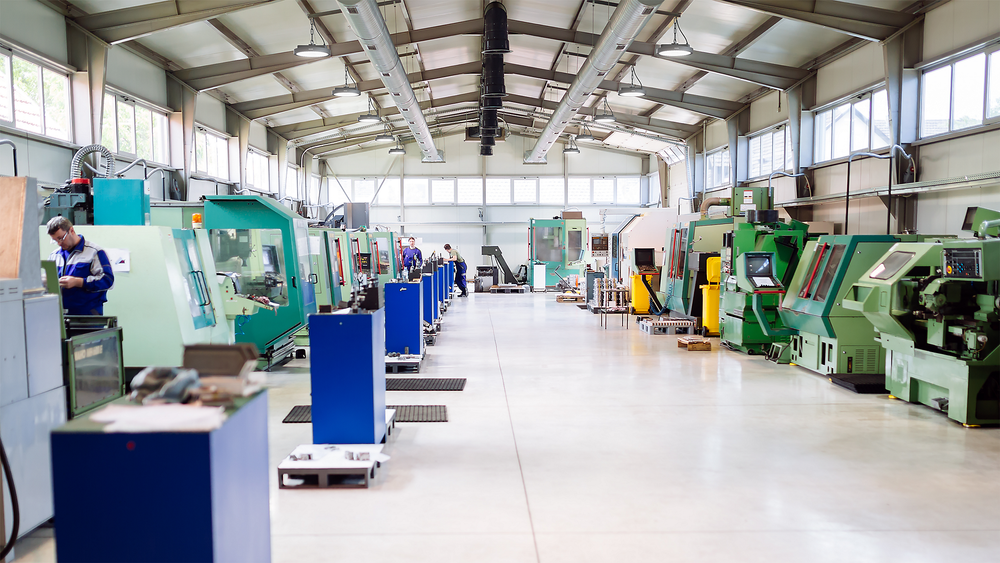

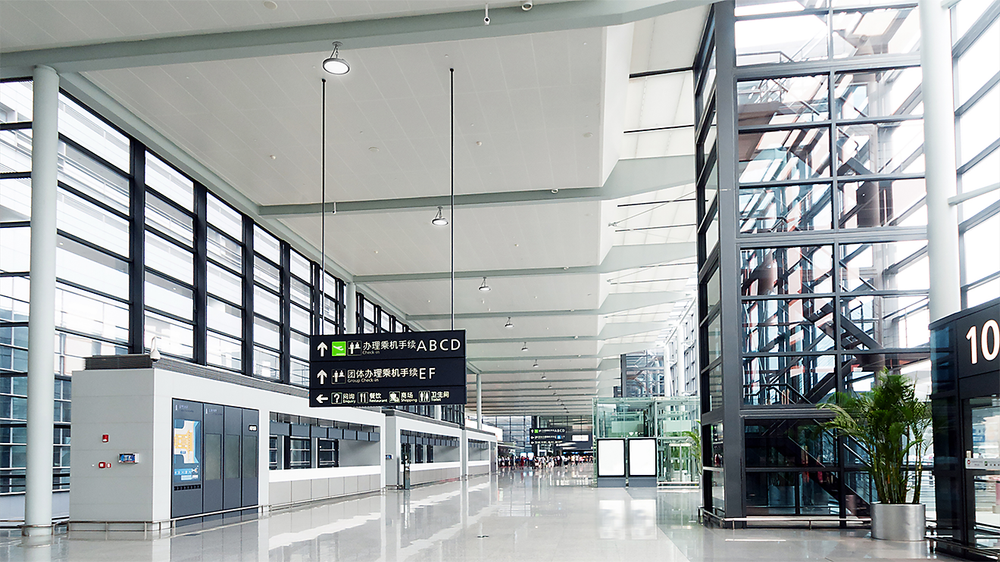

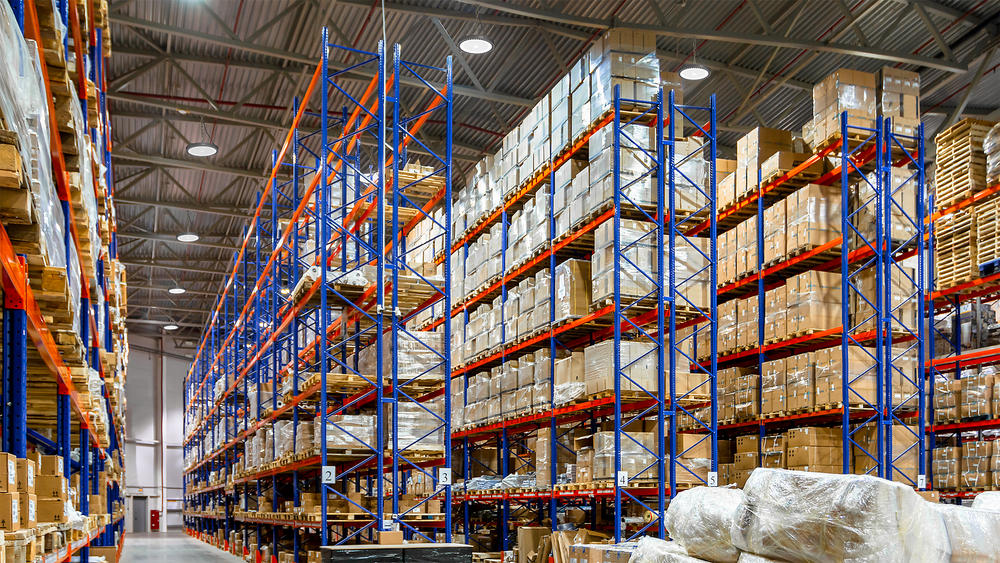

This LED highbay is designed for industrial and commercial premises. You can use it for manufacturing facilities, retail warehouses, logistics centers, and sports facilities, ensuring safe and uniform lighting.

Key features

  • Philips CoreLine Highbay Gen5 LED highbay light delivers 20000 lumens of bright and efficient lighting for large areas.
  • 126W power consumption provides strong light output while optimizing energy use in demanding environments.
  • 4000K neutral white light ensures clear visibility and a comfortable working atmosphere.
  • IP65 rating protects against dust and jet water, making it suitable for harsh industrial conditions.
  • IK08 impact resistance adds durability against vandalism and accidental knocks.
  • Die-cast aluminum body with polycarbonate optics ensures robustness and long-term reliability.
  • Lumen maintenance of L85 at 50,000 hours guarantees consistent lighting performance.
  • Designed for ambient temperatures from -30 to +50 °C, ensuring reliable use in varied conditions.
  • Non-dimmable PSU driver included for simple installation and maintenance-free operation.
  • Certified with CE, ENEC, and RoHS compliance for safety and sustainability.
Specifications

General

Product Family
CoreLine Highbay Gen5
Full Product Name
BY121P G5 LED200S/840 PSU NB
Lamp Type
LED
Driver Included
true
Light Source Replaceable
false
Number of Gear Units
1
Service Tag
true
Warranty Period
5 years

Product Identifiers

Order Product Name
BY121P G5 LED200S/840 PSU NB
Order Code
8719514955684
Material Number (12NC)
911401629408
EAN/UPC Product
871951495568400
EAN/UPC Case
8719514955684

Electrical

Input Voltage
220-240 V
Input Frequency
50 to 60 Hz
Power Consumption
126 W
Power Consumption Tolerance
+/-10%
Power Factor
0.95
Inrush Current
40 A
Inrush Time
0.665 ms
Total Harmonic Distortion
15%
Connection
3-pole connection unit
Cable
0.3 m cable with 3-pole connector
IEC Protection Class
Safety Class I
Number of Products on MCB 16A Type B
6
Suitable for Random Switching
true

Light Technical

Luminous Flux
20000 lm
Luminous Efficacy
159 lm/W
Color Temperature
4000 K
Light Source Color
840 neutral white
Color Rendering Index (CRI)
>80
Saturated Red (R9)
<50
Initial Chromaticity
(0.385, 0.380) SDCM<5
Color Consistency
≤5 SDCM
Optic Type
Narrow beam
Beam Angle
55°
Unified Glare Rating (UGR)
22
Flicker Value (PstLM)
0.5
Stroboscopic Effect Value (SVM)
1
Luminous Flux Tolerance
+/-10%

Control and Dimming

Dimmable
false
Driver
Power supply unit (on/off)
Constant Light Output
false
Maximum Dim Level
Not applicable

Mechanical and Housing

Housing Material
Die-cast aluminum
Optical Material
Polycarbonate
Optical Cover Material
Polycarbonate
Optical Cover Finish
Clear
Housing Color
Gray
Dimensions
Length
330 mm
Height
99 mm
Diameter
330 mm
Net Weight
2.690 kg

Performance and Lifetime

Ambient Temperature Range
-30 to +50 °C
Performance Ambient Temperature
35 °C
Driver Failure Rate at 50,000 hrs
5%
Driver Failure Rate at 100,000 hrs
10%
Lumen Maintenance at 50,000 hrs
L85
Lumen Maintenance at 100,000 hrs
L75

Approvals and Application

IP Rating
IP65 (dust penetration-protected, jet-proof)
IK Rating
IK08 (5 J vandal-protected)
Flammability Mark
For mounting on normally flammable surfaces
Glow Wire Test
Temperature 650 °C, duration 30 s
CE Mark
true
ENEC Mark
ENEC mark
EU RoHS Compliant
true
Photobiological Risk
Photobiological risk group 1 @200mm to EN62778
Photobiological Risk Specification
18.2 m
Maintenance Class
Class C, maintenance-free parts

Packaging

Quantity per Pack
1
Packs per Outer Box
1
