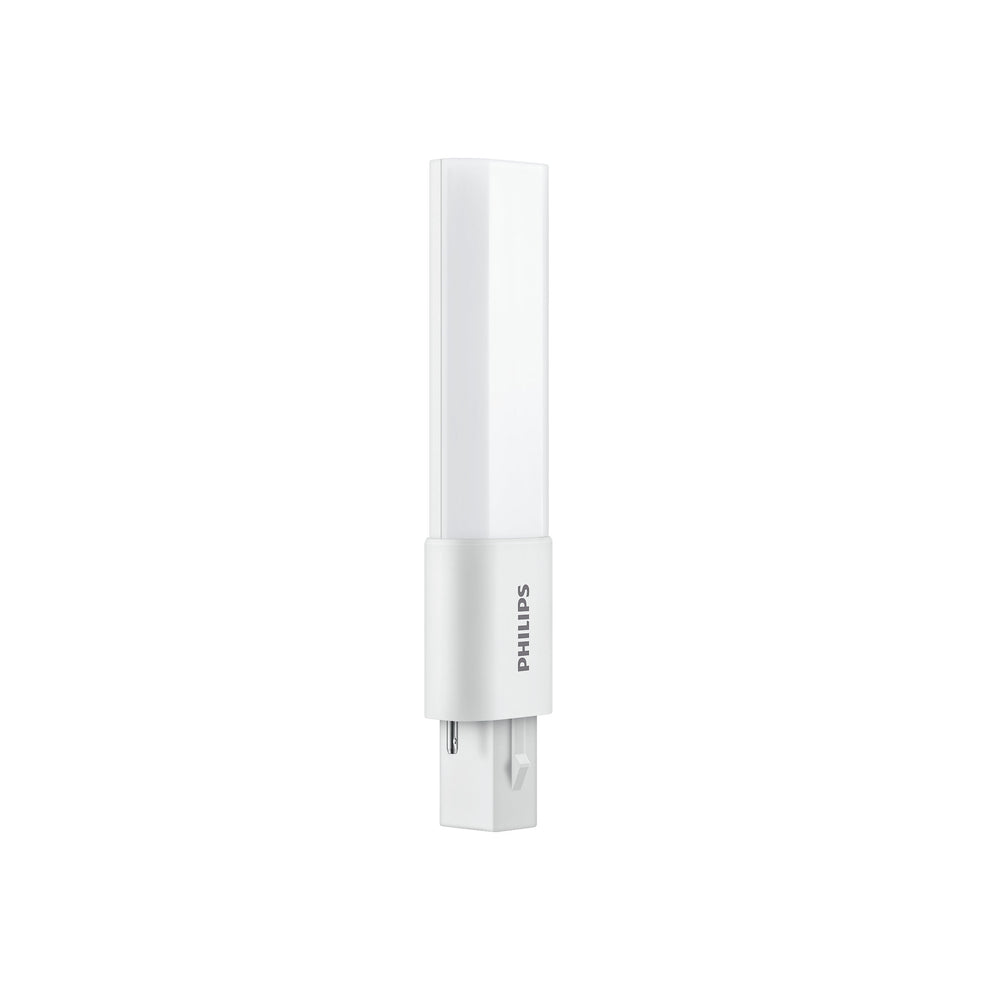

Philips CorePro LED PLS 3.5W 830 G23 plug-in lamp 3000K 360 lumens 220-240V non-dimmable CE RoHS
Philips CorePro LED PLS 3.5W 830 G23 plug-in lamp 3000K 360 lumens 220-240V non-dimmable CE RoHS
Philips CorePro LED PLS 3.5W 830 G23 plug-in lamp 3000K 360 lumens 220-240V non-dimmable CE RoHS
Philips CorePro LED PLS 3.5W 830 G23 plug-in lamp 3000K 360 lumens 220-240V non-dimmable CE RoHS
Philips CorePro LED PLS 3.5W 830 G23 plug-in lamp 3000K 360 lumens 220-240V non-dimmable CE RoHS

LED Lamp CorePro PLS 3.5W 830 220-240V
-
G23
-
3.5W
-
360 lm
-
3000K
-
2 Pins

PH286542
Datasheet
50,95
Stock: 30+
Expected delivery time: 7 - 9 dagen
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Philips CorePro LED PLS 3.5W 830 G23 plug-in lamp 3000K 360 lumens 220-240V non-dimmable CE RoHS
LED Lamp CorePro PLS 3.5W 830 220-240V
-
G23
-
3.5W
-
360 lm
-
3000K
-
2 Pins
50,95
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0,00
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Description

Discover efficient Philips CorePro LED PLS lighting

The Philips CorePro LED PLS 3.5W 830 G23 is a reliable retrofit lamp designed to replace traditional CFL plug-in lamps with energy-saving LED technology. You benefit from low power consumption, long service life, and instant warm-up while enjoying a comfortable warm white light of 3000K.

Why choose this LED lamp

This compact Philips LED lamp offers you a practical upgrade without needing to change the existing fixture. It combines 3000K warm white light for cozy brightness, a 120° beam angle for wide coverage, and excellent efficiency at 102 lumens per watt. With a 30,000-hour lifetime, you reduce maintenance and replacement costs significantly.

Practical applications

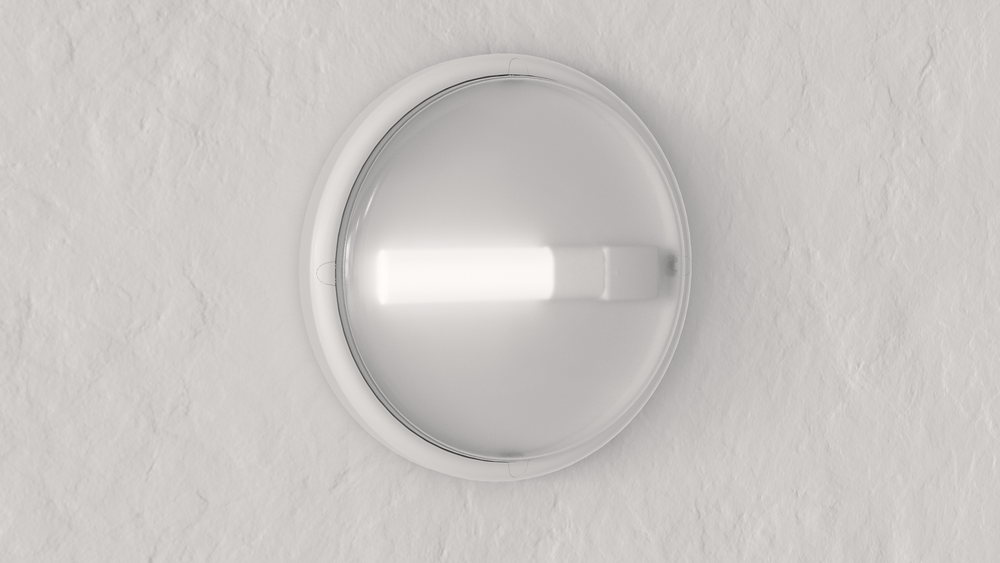

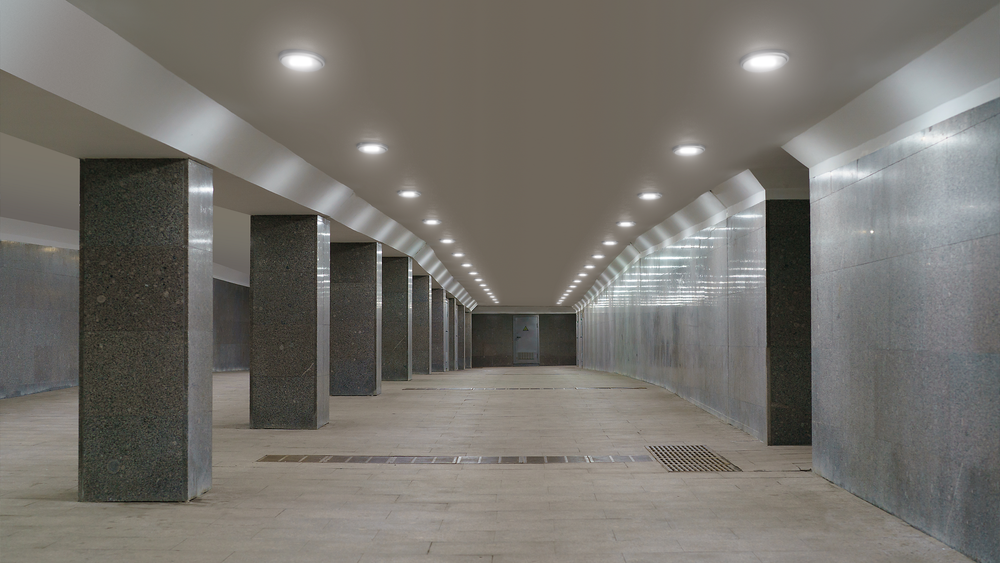

You can use this LED PLS lamp in offices, corridors, hotels, and residential settings. Thanks to its G23 base, it fits your existing CFL lamp sockets and works with EM ballasts or direct mains connection. Its compact size ensures versatile installation in small luminaires or under-cabinet lighting solutions.

Key technical specifications

  • Philips CorePro LED PLS 3.5W 830 G23 provides 360 lumens of warm white 3000K light, ensuring bright but comfortable illumination.
  • G23 socket type makes it easy to replace conventional CFL plug-in lamps without rewiring.
  • Rated lifetime of 30,000 hours reduces maintenance and lamp changes.
  • Delivers high efficacy at 102 lumens per watt, lowering your energy use compared to CFL alternatives.
  • 3000K warm white color temperature is ideal for welcoming and relaxing environments.
  • 82 CRI ensures natural and accurate color rendering, improving lighting quality.
  • Non-dimmable design makes it simple to use in standard luminaires.
  • CE and RoHS certifications guarantee safe and compliant performance.
  • Operating range of -20°C to +45°C allows flexibility for different indoor conditions.

Conclusion

If you want to cut energy usage while keeping easy installation, the Philips CorePro LED PLS 3.5W 830 G23 is a straightforward retrofit solution. It gives you instant light, dependable performance, and the trusted quality of Philips in one compact LED lamp.

Specifications

Product Information

Product Name
CorePro LED PLS 3.5W 830 2P G23
Full Product Name
CorePro LED PLS 3.5W 830 2P G23

General

Socket Type
G23
Lamp Type
LED
Nominal Lifetime
30000 hours
Switching Cycle
50000
Ballast Compatibility
EM/Mains
Fluorescent Lamp Power Equivalent
7 W

Light Technical Data

Color Code
830
Color Designation
White (WH)
Correlated Color Temperature
3000 K
Luminous Flux
360 lm
Luminous Efficacy
102 lm/W
Beam Angle
120 degrees
Color Rendering Index (CRI)
82
Color Consistency
<6
Lumen Maintenance Factor at End of Nominal Lifetime
70%
Flicker Value (PstLM)
1
Stroboscopic Effect Value (SVM)
0.4
Photobiological Safety
RG0
Luminous Flux Measurement Reference
Sphere

Electrical Characteristics

Power Consumption
3.5 W
Voltage
220-240 V
Input Frequency
50 to 60 Hz
Power Factor
0.9
Lamp Current
22 mA
Start Up Time
0.5 s
Warm Up Time to 60% Light
0.5 s
Inrush Current
6.6 A
MCB Loading
Max Lamps on MCB B 10A (Mains)
116
Max Lamps on MCB B 10A (EM Ballast without capacitor)
500
Max Lamps on MCB B 16A (Mains)
186
Max Lamps on MCB B 16A (EM Ballast without capacitor)
801

Operating Conditions

Ambient Temperature Range
-20 to +45 °C
T-Case Maximum
45 °C
Dimmable
No

Physical Attributes

Bulb Shape
PL-S
Bulb Finish
Matte
Bulb Material
Plastic
Net Weight
0.038 kg
Dimensions
D1
16 mm
D
31 mm
A1
79 mm
A2
115 mm
A3
137 mm

Certifications and Classifications

Energy Efficiency Class
F
Energy Saving Product
Yes
Energy Consumption per 1000 hours
4 kWh
EU RoHS Compliant
Yes
Approvals and Marks
CE marking, RoHS compliance, KEMA-KEUR certificate
EPREL Registration Number
1820624

Ordering Information

Order Product Name
CorePro LED PLS 3.5W 830 2P G23
Order Code
8720169286542
Material Number (12NC)
929003756602
EAN/UPC - Product
8720169286542
EAN/UPC - Case
8720169286559
Full EOC
872016928654200
Quantity Per Pack
1
Packs Per Box
20
Philips CorePro LED PLS 3.5W 830 G23 plug-in lamp 3000K 360 lumens 220-240V non-dimmable CE RoHS
