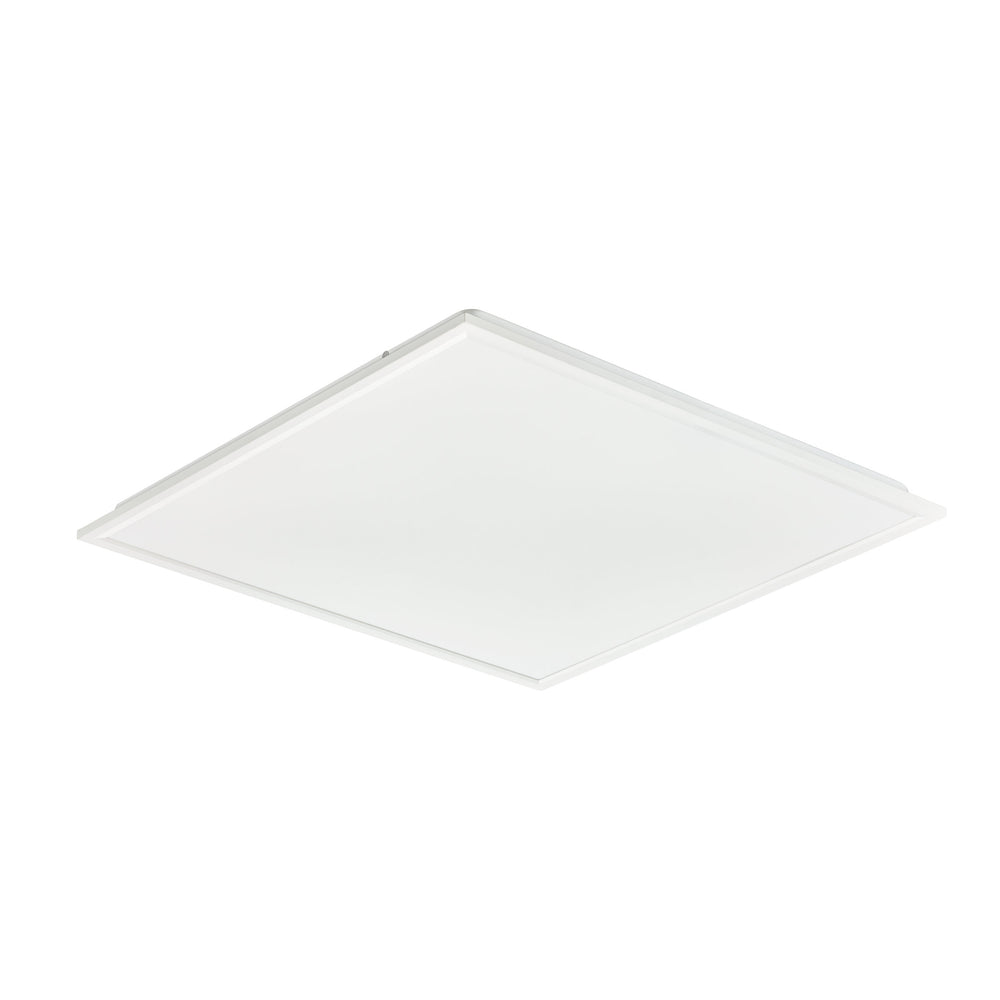

Philips CoreLine Panel RC132V G6 LED 26W 3000K 3400 lumens 595x595mm UGR22 IP20 White
Philips CoreLine Panel RC132V G6 LED 26W 3000K 3400 lumens 595x595mm UGR22 IP20 White
Philips CoreLine Panel RC132V G6 LED 26W 3000K 3400 lumens 595x595mm UGR22 IP20 White

LED Panel CoreLine Gen6 595x595x62 mm
-
3400 lm
-
3000K
-
5 year warranty
-
220-240V
-
<22

PH751330
Datasheet
578,95
Stock: 30+
Expected delivery time: 7 - 9 dagen
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Philips CoreLine Panel RC132V G6 LED 26W 3000K 3400 lumens 595x595mm UGR22 IP20 White
LED Panel CoreLine Gen6 595x595x62 mm
-
3400 lm
-
3000K
-
5 year warranty
-
220-240V
-
<22
578,95
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0,00
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Description

Energy-efficient Philips CoreLine LED panel

The Philips CoreLine Panel RC132V G6 offers you reliable LED performance with high efficiency, delivering 3400 lumens at just 26W. You benefit from a warm 3000K light, a modern slim design, and an exceptionally long lifetime of up to 100,000 hours, making it perfect for hassle-free installations.

Why this LED panel is right for you

This energy-saving LED panel is designed for offices, schools, and commercial spaces where uniform and comfortable lighting is needed. With a glare rating of UGR22, it provides visual comfort for everyday tasks. Its steel housing with opal polystyrene diffuser ensures durability and a clean aesthetic, while the IP20 rating makes it suitable for standard indoor applications.

Key features of Philips CoreLine Panel RC132V G6

  • Philips CoreLine Panel RC132V G6 LED 26W 3000K provides 3400 lumens for highly efficient, energy-saving lighting.
  • 3400 lumens output ensures bright and uniform illumination while reducing energy costs.
  • 3000K warm white color temperature creates a comfortable and natural ambience for working environments.
  • CRI >80 shows colors accurately, making it suitable for tasks that require good visual clarity.
  • UGR22 rating helps reduce glare, ensuring eye comfort during longer working hours.
  • 595x595x62mm size fits standard ceiling grids, allowing quick and simple installation.
  • Steel housing with opal optic cover offers both strength and an elegant modern look.
  • Rated lifetime of up to 100,000 hours means minimal maintenance and long-term reliability.
  • IP20 protection is adequate for indoor spaces such as offices, classrooms, and corridors.
  • Class II, ENEC and CE certified for safe and compliant installations.

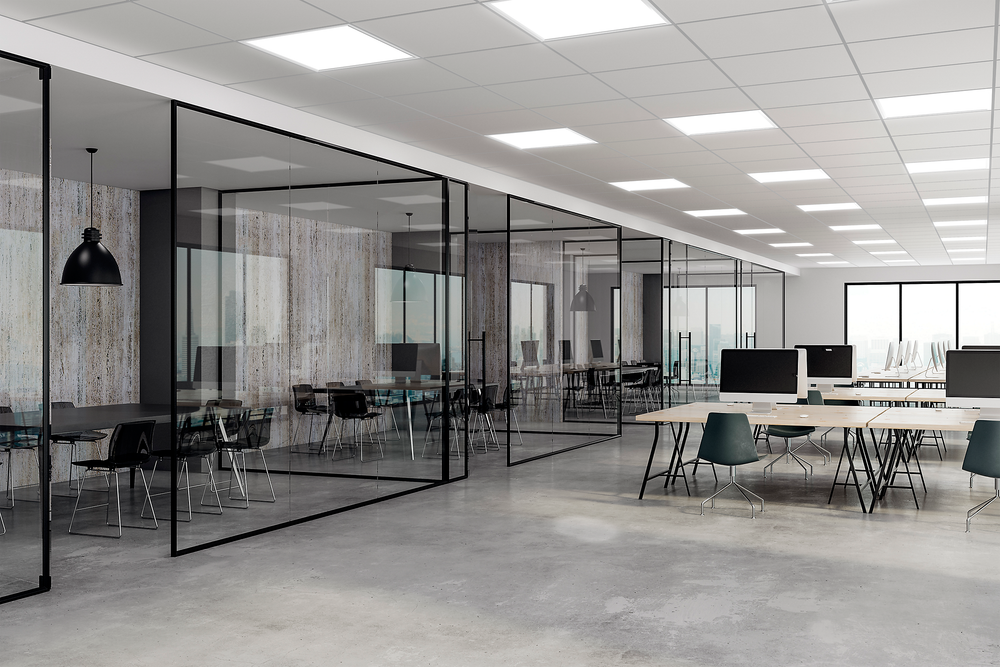

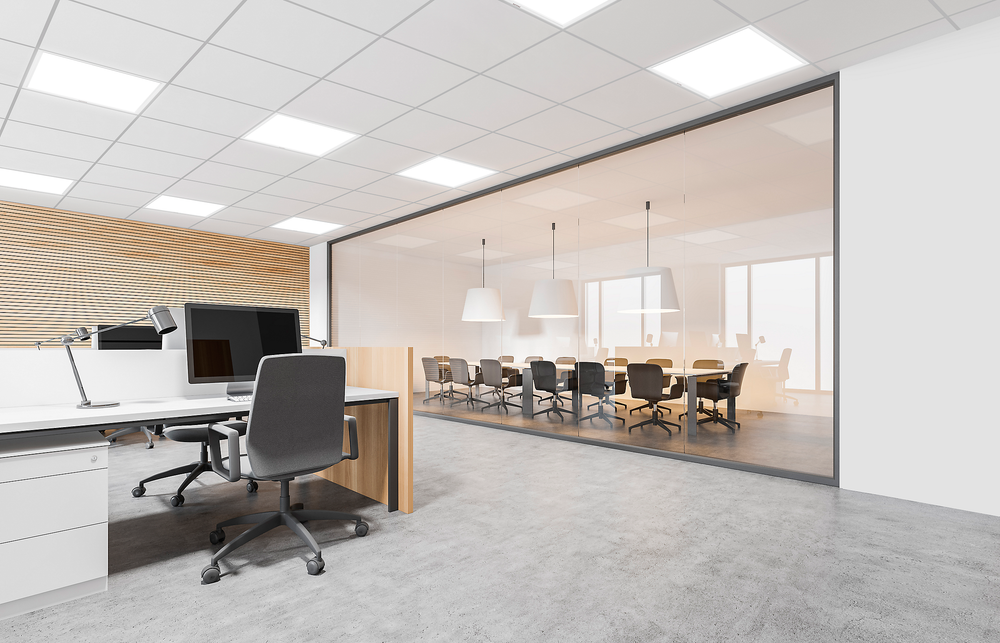

Where you can use it

You can install this LED panel in suspended ceilings for offices, schools, hospitals, and shops. It is especially useful when you want low-maintenance, comfortable lighting with professional quality and energy savings.

Specifications

General

Product Name
CoreLine Panel gen6
Full Product Name
RC132V G6 34S/830 PSU W60L60 NOC
Product Family
CoreLine Panel
Warranty Period
5 years
Driver Included
Yes
Service Tag
Yes
Maintenance Convenience Class
Class C, luminaire without serviceable parts, maintenance-free
Order Code
8720169751330
Material Number (12NC)
911401807587
EAN/UPC
8720169751330

Lighting Characteristics

Luminous Flux
3400 lm
Luminous Efficacy
131 lm/W
Correlated Color Temperature
3000 K
Light Source Color
830 warm white
Color Rendering Index (CRI)
>80
Initial Chromaticity
(0.43, 0.40) SDCM ≤3
Beam Angle
120°
Unified Glare Rating (UGR)
22
Flicker Value (PstLM)
1
Stroboscopic Effect Value (SVM)
0.4
Luminous Flux Tolerance
+/-10%

Electrical Ratings

Input Voltage
220 to 240 V
Input Frequency
50 or 60 Hz
Power Consumption
26 W
Power Consumption Tolerance
+/-10%
Power Factor
0.9
Inrush Current
16 A
Inrush Time
0.2 ms
Total Harmonic Distortion
20%
Products on MCB 16A Type B
30

Controls and Dimming

Dimmable
No
Driver Type
External power supply unit (on/off)
Constant Light Output
No

Physical Attributes

Dimensions
Overall Length
595 mm
Overall Width
595 mm
Overall Height
62 mm
Net Weight
1.65 kg
Housing Material
Steel
Housing Color
White
Reflector Material
Acrylate
Optic Material
Polystyrene
Optical Cover Material
Polystyrene
Optical Cover Finish
Opal
Connection Type
2-pole push-in connector

Performance and Lifetime

Operating Ambient Temperature Range
-10 to +35 °C
Performance Ambient Temperature
25 °C
Median Useful Life (L80B50)
100,000 hours
Median Useful Life (L90B50)
50,000 hours
Driver Failure Rate (at 50,000 hours)
5%

Safety and Certifications

IEC Protection Class
Class II
IP Rating
IP20/44
IK Rating
IK03 (0.3 J)
Flammability Mark
For mounting on normally flammable surfaces (F)
Glow-Wire Test
650 °C, duration 30 s
Photobiological Risk
Risk group 0
Photobiological Risk Specification
0.2 m
Safety Device
Safety cable (SC)
CE Mark
Yes
ENEC Mark
ENEC mark
EU RoHS Compliant
Yes
