Philips CoreLine Batten BN126C LED 18W 2300 lumens 3000K 220-240V 120° White IP20 L1200
Philips CoreLine Batten BN126C LED 18W 2300 lumens 3000K 220-240V 120° White IP20 L1200
Philips CoreLine Batten BN126C LED 18W 2300 lumens 3000K 220-240V 120° White IP20 L1200
Philips CoreLine Batten BN126C LED 18W 2300 lumens 3000K 220-240V 120° White IP20 L1200
Philips CoreLine Batten BN126C LED 18W 2300 lumens 3000K 220-240V 120° White IP20 L1200
Philips CoreLine Batten BN126C LED 18W 2300 lumens 3000K 220-240V 120° White IP20 L1200
Philips CoreLine Batten BN126C LED 18W 2300 lumens 3000K 220-240V 120° White IP20 L1200
Philips CoreLine Batten BN126C LED 18W 2300 lumens 3000K 220-240V 120° White IP20 L1200

LED Batten BN126C 1135x65x65 mm
-
2300 lm
-
3000K
-
5 year warranty
-
220-240V
-
<26

PH948778
Energy label
454,95
Stock: 30+
Expected delivery time: 7 - 9 dagen
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Philips CoreLine Batten BN126C LED 18W 2300 lumens 3000K 220-240V 120° White IP20 L1200
LED Batten BN126C 1135x65x65 mm
-
2300 lm
-
3000K
-
5 year warranty
-
220-240V
-
<26
454,95
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0,00
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Description

Reliable LED batten light for everyday use

The Philips CoreLine Batten BN126C LED is a reliable LED batten light designed to give you consistent illumination with low energy use. You get 2300 lumens of bright warm white light, a long 50,000-hour lifetime, and a slim durable housing that is easy to install.

Why this batten light works for you

This LED batten is perfect if you need strong, energy-efficient lighting in commercial, office, or general utility spaces. Its 18W power consumption combined with 128 lm/W efficacy means lower running costs. Thanks to its robust steel housing and opal polycarbonate cover, this light offers dependable performance while keeping glare low.

Practical applications

You can use this Philips CoreLine Batten in corridors, storage areas, workshops, or under-cabinet applications where uniform and reliable lighting is essential. Its 120° beam ensures wide and even light distribution, making it suitable for both task and ambient lighting needs.

Key technical features

  • Philips CoreLine Batten BN126C LED offers 2300 lumens of warm white light at just 18W, giving you energy efficiency with high brightness.
  • 3000K warm white color temperature creates a comfortable and welcoming atmosphere.
  • CRI >80 ensures natural color rendering, which is ideal for both work areas and general spaces.
  • 120° wide beam angle delivers uniform illumination over large areas.
  • Durable steel housing and opal polycarbonate cover provide longevity and consistent performance.
  • IP20 and IK04 rated, making it suitable for indoor spaces with standard protection needs.
  • Non-dimmable on/off operation with simple 3-pole push-in connector allows fast installation.
  • Dimensions: 1135mm length, 65mm width, 65mm height—slim profile perfect for multiple mounting setups.
  • Long lifetime with L80 at 50,000 hours means less maintenance and fewer replacements.
  • Complies with CE, ENEC, and RoHS standards, ensuring safe and certified performance.

Performance you can trust

Backed by a 5-year warranty and Philips’ reputation for quality, this batten light ensures you get dependable performance with minimal maintenance. It is a practical and cost-effective choice for anyone looking to upgrade to efficient LED lighting without compromising on quality.

Specifications

General

Product Family
CoreLine Batten
Product Model
BN126C LED23S/830 PSU L1200
Lamp Type
LED
Light Source Replaceable
No
Driver Included
Yes
Serviceable
Yes
Warranty Period
5 years

Lighting Characteristics

Luminous Flux
2300 lm
Luminous Efficacy
128 lm/W
Correlated Color Temperature (CCT)
3000 K
Light Source Color
830 warm white
Color Rendering Index (CRI)
>80
Saturated Red (R9)
<50
Initial Chromaticity
(0.43, 0.40) SDCM ≤3
Color Consistency (MacAdam Ellipse)
≤3 SDCM
Beam Angle
120°
Optic Type
Opal
Unified Glare Rating (UGR)
26

Electrical Characteristics

Input Voltage
220-240 V
Input Frequency
50 or 60 Hz
Power Consumption
18 W
Power Factor
0.9
Inrush Current
8.3 A
Inrush Time
0.332 ms
Connection Type
3-pole push-in connector
Through Wiring
1-phase through-wiring ready
Number of Products on MCB 16A Type B
25
Power Consumption Tolerance
+/-10%

Physical Attributes

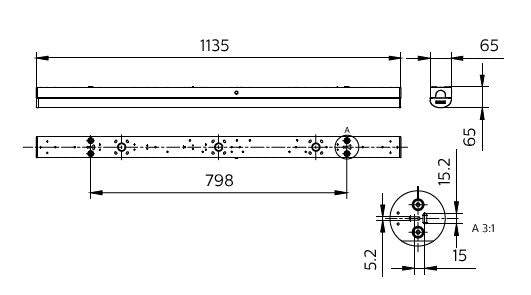

Dimensions
Overall Length
1135 mm
Overall Width
65 mm
Overall Height
65 mm
Mounting Hole Distance
798 mm
Net Weight
1.10 kg
Housing Material
Steel
Housing Color
White
Optical Cover Material
Polycarbonate
Optical Cover Finish
Opal

Control and Dimming

Dimmable
No
Control Interface
On/off power supply unit
Constant Light Output
No

Performance and Lifetime

Ambient Temperature Range
-20 to +40 °C
Performance Ambient Temperature
25 °C
Lumen Maintenance (50,000 hrs)
L80
Lumen Maintenance (100,000 hrs)
L70
Driver Failure Rate (at 50,000 hrs)
5%
Luminous Flux Tolerance
+/-10%
Flicker Value (PstLM)
1
Stroboscopic Effect Value (SVM)
1.6

Certifications and Safety

IP Code
IP20
IK Code
IK04 (0.5 J)
IEC Safety Class
Class I
Glow-wire Test
650 °C, duration 30 s
Flammability Mark
F (For mounting on normally flammable surfaces)
CE Mark
Yes
ENEC Mark
Yes
EU RoHS Compliant
Yes
Photobiological Risk
Risk Group 0 at 200mm to EN62778
Photobiological Risk Specification
0.2 m

Ordering Information

Full Product Name
BN126C LED23S/830 PSU L1200
Order Code
8719514948778
Material Number (12NC)
911401833884
EAN/UPC (Product)
8719514948778
EAN/UPC (Case)
8719514948990
Quantity per Pack
1
Packs per Outer Box
8
