Description

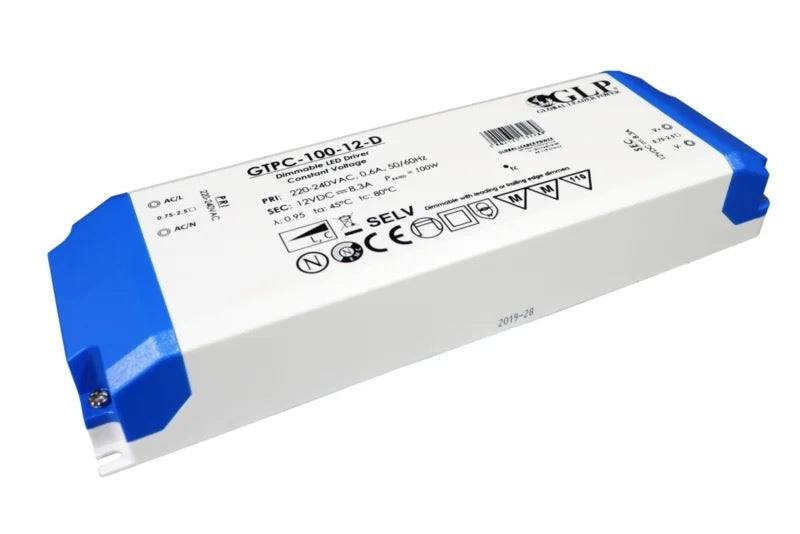

Reliable LED power supply for your 12V lighting

The GLP LED power supply adapter 12V 100W 8.33A brings you a dependable solution to power your low-voltage lighting projects. With stable performance, flicker-free operation, and CE RoHS certifications, you can count on safety, durability, and efficiency for your LED installations.

Why this LED power supply is perfect for you

This adapter is designed to deliver consistent power to 12V LED systems up to 100W. You’ll enjoy smooth lighting without flickering, plus the assurance of CE and RoHS compliance. It’s lightweight, compact, and easy to integrate into various indoor applications where stable and efficient power is essential.

Main applications

Whether you need reliable LED power for under-cabinet strips, display lighting, or accent illumination, this 12V 100W supply ensures consistent performance. It’s ideal for residential projects, commercial display shelves, or office furniture lighting where dependable low-voltage power is required.

Key technical specifications

  • GLP LED power supply adapter 12V 100W 8.33A ensures stable and efficient low-voltage lighting performance.
  • Input 220-240V AC makes it compatible with standard household and commercial power networks.
  • Output of 12V 8.33A allows you to drive up to 100W of LED load safely.
  • Rated IP20, making it suitable for indoor use in dry environments.
  • Flicker-free design offers comfortable lighting, preventing eye strain during long usage.
  • Frequency 50-60 Hz ensures reliable and stable operation on grid power.
  • CRI 80-89 provides good color rendering, important for natural and pleasant light.
  • CE and RoHS certifications guarantee compliance with safety and environmental standards.
  • Wide operating temperature from -20°C to +40°C means reliable performance in varying conditions.
  • Includes 5-year warranty for peace of mind and long-term durability.

Conclusion

If you’re looking for a reliable 12V 100W LED power supply that delivers flicker-free, efficient, and certified safe performance, this GLP model is a smart choice for your indoor lighting needs.

Specifications

General Information

Product Series
GTPC-100-D series
Product Type
100W PWM Style Output LED Triac Dimmable Constant Voltage Power Supply
Rated Power
100W
Cooling Method
Free air convection
Isolation Class
Class II
Certifications
SELV, CB, CE

Models

Output Characteristics

Output Style
Constant Voltage, PWM style
Line Regulation
± 2%
Load Regulation
± 2%
Voltage Tolerance
± 2%
Ripple and Noise (max)
300mVp-p
Setup Time
500ms at 230VAC, full load

Input Characteristics

Voltage Range
220 - 240VAC
Frequency Range
47 - 63Hz
AC Current (typical)
0.60A at 230VAC
Inrush Current (typical)
65A at 230VAC for 500µs
Maximum Units per Circuit Breaker
B10
2
B16
3
C10
3
C16
4
D10
5
D16
8

Dimming

Dimming Method
Triac (leading or trailing edge)
Dimming Range
1 - 100% of rated output current
Compatible Load Types
Capacitive or inductive loads

Protections

Overload
Trigger Range
> 150%
Protection Type
Hiccup mode, auto-recovery
Short Circuit
Protection Type
Hiccup mode, auto-recovery
Over Voltage
Protection Type
Hiccup mode, auto-recovery

Environmental

Working Temperature
-20 to 50°C
Maximum Ambient Temperature (ta)
40°C
Maximum Case Temperature (tc)
80°C
Working Humidity
20% to 90% RH (non-condensing)
Storage Temperature and Humidity
-20 to 70°C, 10% to 95% RH (non-condensing)

Safety and Compliance

Safety Standards
EN 61347-1, EN 61347-2-13, EN 60598-1
Withstand Voltage
3.75kVAC (Input-Output)
Isolation Resistance
100MΩ at 500VDC / 25°C / 70% RH (Input-Output)
EMC Emission Standards
EN 55015, EN 62493
EMC Immunity Standards
EN 61547
Harmonic Current Standards
EN 61000-3-3, EN 61000-3-2

Physical Attributes

Dimensions
Length
210 mm
Width
67 mm
Height
34 mm
Weight
360g

Reliability

Lifetime (typical)
30,000 hours
