Track Lighting Rail

Operation and Types of Track Lighting Systems

Track lighting systems operate by providing a continuous power supply along the rail, allowing fixtures to make contact and draw electricity. Fixtures can be easily clicked or twisted onto the rail, and then freely moved along its length. This makes changing the direction of light or adding extra light sources particularly simple. There are two commonly used types of track lighting systems:

Single-Circuit Track: A Practical Choice for Smaller Setups

With a single-circuit track, all connected fixtures are tied to a single electrical circuit. This means all lights are switched on or off at the same time with one switch. This type of rail is a simple and cost-effective solution for smaller spaces or applications where a single lighting group suffices, such as above a kitchen island at home or in a small retail space. Installation is relatively straightforward, making it a suitable option for many common projects.

Three-Circuit Track: Control and Versatility for More Complex Projects

A three-circuit track offers more control over lighting by featuring three separate power circuits within the same rail. This allows you to divide fixtures into different groups and control or dim them independently. This is advantageous in larger commercial spaces such as showrooms, museums, or offices, where different parts of the space require distinct lighting. For example, general lighting can be separated from accent lighting, or presentation areas and walkways can be highlighted individually.

Components of a Complete Track Lighting Installation

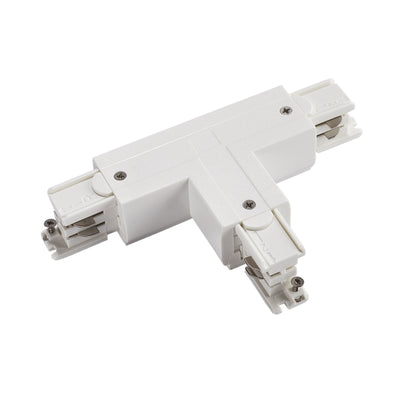

To build a functional track lighting system, several components are required. Besides the rail itself, these parts complete the system:

Key Points for Installing Track Lighting

Proper installation of track lighting contributes to the system’s functionality and safety. Some practical considerations for installers and electricians:

• Check the phase arrangement: For three-circuit systems, it's important to connect the phases correctly and mount fixtures on the intended phase. This prevents overloading and ensures independent switching of lighting groups. Always consult the manufacturer's instructions.
• Proper grounding: Ensure the entire system is properly grounded. This is vital for electrical safety.
• Ceiling load capacity: Consider the total weight of the rail and fixtures. Check if the ceiling has sufficient load-bearing capacity, especially with longer rails or heavier fixtures.
• Accessibility for maintenance: Place the rail in a location that is easily accessible for replacing light sources or performing maintenance.
• Rail alignment: Installing the rail perfectly straight is important for a clean appearance and correct operation. Use a level for accurate installation.

Which Fixtures Can Be Used on Track Lighting Rails?

There is a wide variety of fixtures for track rails, making it possible to find a suitable solution for almost any lighting need. The most commonly used types are:

• Spotlights: These are the most common fixtures for track rails. They can swivel and tilt, allowing light to be directed precisely at objects, walls, or worktops. Available in various brightness levels and beam angles.
• Pendant Fixtures: Suspended from the rail via an adapter, they offer a more decorative lighting solution. They are suitable above tables, counters, or in high spaces where ambiance and indirect light are desired.
• Floodlights: Fixtures that distribute a wide beam of light, making them suitable for general illumination of larger areas.

The choice of specific fixtures depends on the desired light output (Lumen), light color (Kelvin), color rendering (CRI), and dimming capability. LED fixtures have become the standard due to their energy efficiency and long lifespan.
