Mounting Battens

Advantages of LED Mounting Battens for Optimal Performance

Choosing LED mounting battens offers a range of significant benefits that go beyond mere energy savings. These fixtures are designed to meet the needs of both professionals and demanding DIY enthusiasts, focusing on durability, efficiency, and ease of use:

• Substantial energy savings: Compared to conventional fluorescent fixtures, LED mounting battens drastically reduce energy consumption, often by 50% up to 80%. This translates to significantly lower operational costs over the long term.
• Exceptionally long lifespan: With an average lifespan of 50,000 to 70,000 burning hours, LED battens greatly surpass traditional light sources. This minimizes the need for replacement and considerably lowers maintenance costs.
• Robust construction: Many LED mounting battens are designed to withstand harsh conditions such as dust, moisture, and even shocks, making them ideal for industrial environments.
• Instant brightness: LEDs provide full illumination immediately, with no warm-up time or bothersome flicker.
• Environmentally friendly: LED fluorescent fixtures contain no mercury or other harmful substances, making them a safe, sustainable, and fully recyclable choice.

Different Types of LED Mounting Battens and Their Applications

There are various types of mounting battens for LED fluorescent lighting, each with specific characteristics and suitability for different applications. The right choice depends on the desired light output, the installation environment, and any additional functionalities:

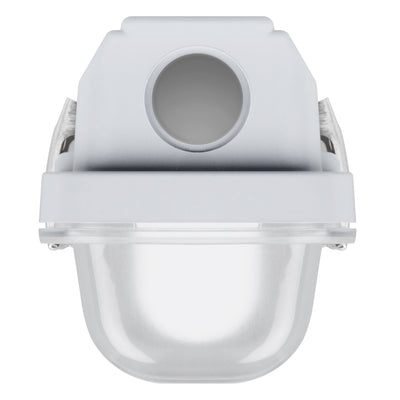

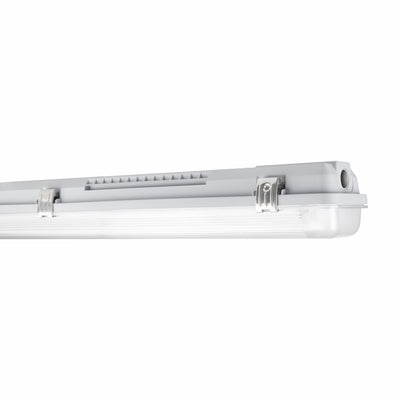

LED Fluorescent Fixtures with Replaceable Tubes

These are empty fixtures in which you can place LED fluorescent tubes yourself. They are available in various lengths, such as 60 cm, 120 cm, and 150 cm, and can be single or double variants. This option offers flexibility for selecting specific LED tubes based on light color, lumen value, and dimmability. They are widely used in offices, schools, and warehouses.

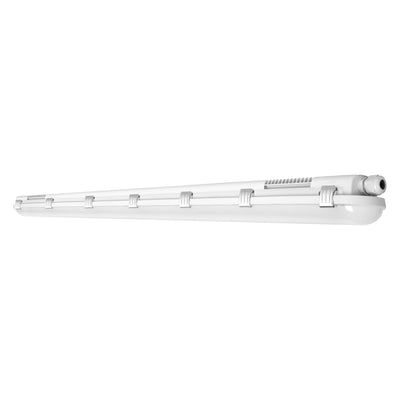

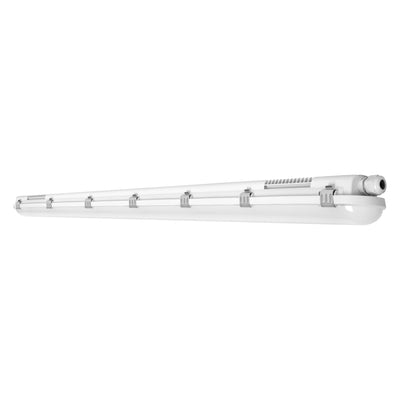

Integrated LED Mounting Battens (LED Battens / Tri-proof)

These fixtures have the LED light source integrated directly into the batten, resulting in a sleek, seamless design. They are often water- and dustproof, making them extremely suitable for demanding environments. Common applications include parking garages, workshops, basements, damp areas, and covered outdoor spaces. Some models are connectable, allowing you to easily create a long, uninterrupted line of light by connecting multiple battens with through-wiring.

Application Areas for LED Mounting Battens

Thanks to their versatility, LED mounting battens can be used in a wide range of commercial, industrial, and residential settings:

• Workshops and garages: Provide bright, functional lighting essential for precision work.
• Warehouses and logistics centers: Ensure adequate lighting in aisles and storage areas.
• Offices and schools: Create a comfortable and productive learning and working environment.
• Shops and showrooms: Highlight products and contribute to an appealing shopping experience.
• Emergency exits and corridors: Essential for safety and orientation, often with models that integrate emergency lighting.
• Carports and damp areas: Specific waterproof models offer reliable lighting in challenging conditions.

Essential Technical Specifications and Features

When selecting the right LED mounting batten, several technical aspects are important to ensure optimal performance and durability. Understanding these specifications helps you make an informed choice:

Protection Ratings

The level of protection against external influences is indicated by the IP and IK ratings:

• IP Rating (Ingress Protection): The two digits indicate the protection against dust (first digit) and water (second digit).
  • IP20: Suitable for dry indoor areas, such as offices or kitchens.
  • IP44: Splash-water resistant, suitable for sheltered outdoor spaces or humid indoor areas.
  • IP65: Dust and jet-water tight, ideal for exposed outdoor environments or areas with high moisture and dust.
  • IP66: Fully dust and waterproof, suitable for highly demanding, wet environments.
• IK Rating (Impact Protection): This value indicates the impact resistance of the fixture, ranging from IK00 (no protection) up to IK10 (resistant to heavy shocks). A higher IK rating is important in areas where fixtures may be subject to vandalism or accidental impacts, such as sports halls or parking garages.

Light Quality and Functionality

The quality of the light and extra features determine the functionality and comfort of the lighting:

• Light color (Kelvin): The color temperature determines the ambiance. Warm white (2700K-3000K) creates a cozy atmosphere, while cool white (4000K-6500K) is ideal for workplaces where focus and clarity are important.
• Lumen (Light output): The higher the lumen value, the more light the batten produces. This is crucial for spaces that require high brightness.
• Color rendering index (CRI): A CRI of 80 or higher is recommended for faithful color representation, especially important in shops and art galleries.
• Dimmability: Many LED mounting battens are dimmable, often via DALI systems, for flexible adjustment of light intensity.
• Sensors: Models with integrated motion or light sensors increase energy efficiency by automatically switching lighting on or off when presence or specific light levels are detected.

Easy Installation of LED Mounting Battens

Installing an LED mounting batten is generally a streamlined process, suitable for both professionals and handy DIYers. Always observe safety regulations, including switching off the power, before starting installation. The specific steps may vary per model, but the basic principles are universal:

1. Preparation: Switch off the power at the distribution board to work safely. Consult the supplied manual of the specific fixture for detailed instructions.
2. Mount the fixture: Attach the mounting brackets of the batten to the ceiling or wall at the desired location, ensuring a solid and stable base.
3. Connect the wiring: Feed the power cable through the designated opening in the fixture (often through the side or middle). Connect the wires correctly to the terminal block or internal clamps of the fixture, according to the wiring diagrams (live, neutral, earth). For connectable fixtures, connect the through-wiring to link multiple battens together.
4. Install cover and LED tube: Firmly put the cover back onto the fixture. For fixtures for separate LED fluorescent tubes, simply click the LED tube into place in the fittings. Pay attention to the 'single-ended' or 'dual-ended' supply of the tube, if applicable.
5. Test: Turn the power back on and check that the lighting is working correctly.

Lifespan and Maintenance of LED Mounting Battens

Thanks to LED technology, mounting battens require minimal maintenance. The long lifespan of the LED sources means you rarely have to think about replacing lamps. Clean the fixtures periodically with a soft, damp cloth to remove dust and dirt, helping to maintain light output. Occasionally inspect the wiring and mounting points for wear or loose connections, especially in demanding environments.

Choose the Right Mounting Batten for Your Project

With a wide range of LED mounting battens available, you'll always find a suitable solution for your specific lighting needs. Whether you are looking for a robust fixture for a workshop, energy-efficient lighting for an office, or a waterproof solution for outdoor use, LED mounting battens provide the ideal combination of performance, durability, and efficiency. They are a smart investment that contributes to a bright, safe, and cost-effective environment.

For questions about compatibility, specific applications, or tailored advice, our lighting experts are always ready to help you make the best choice.
